Semantic middlewares

Sun, Nov 20, 2022

Piping the request

The middleware pattern is an ubiquitous software concept that help us to decoulpe a request process in stages the same way pipeline pattern does. His monoidal nature grants ease of composition, which allow us to reuse any of these stages with other proceses. Moreover, this behaviour arises a declarative way to define our service architecture in semantic terms.

This post will cover the foundations of this mechanism in the HTTP ecosystem, providing some uses to atomize our handlers, and finally showing up the benefits of this approach to define our architecture.

pipelines

Because of its simple and concise syntax, Go is a good language to draft some of the capabilities this pattern brings to our services. It’s a good match, since backend dev is his mainstream domain core, too. But also it’s an exotic choice to talk from an algebraic point of view. And a funny one, I hope.

His most common implementation is based on the Handler interface in the standard library. In that sense, a middleware is just a closure that links handlers:

import _ "net/http"

type Middleware func(Handler) Handler

func Nop(next Handler) Handler {
    return HandlerFunc(func(res ResponseWriter, req *Request) {
        // some logic ...

        next.ServeHTTP(res, req) // continue to the next stage
    })
}

Because of our needs, we’re going to popule it with some dependencies. To make it possible middlewares can be built through objects or closures. As I said in a previous post, I prefer the last one in order to embrace a more functional fashion. That’s it: a closure that closes a closure:

func Auth(authz infra.Authz) mux.MiddlewareFunc {
	auth.Init()

	return func(next Handler) Handler {
		return HandlerFunc(func(res ResponseWriter, req *Request) {
			jwt := req.Headers().Get("Authorization")

			authz.Check(jwt)
		})
	}
}

Connecting

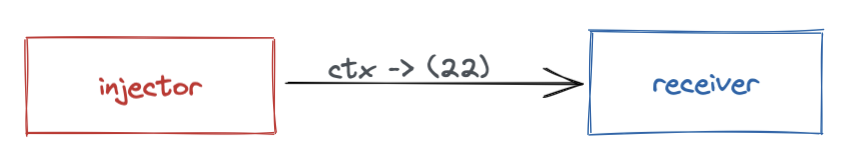

Furthermore of being linked, our middleware gets better if we could connect them each other sharing data. For this purpose we use the request’s context, which carries the values in his inner map.

func injector(next Handler) Handler {
    return HandlerFunc(func(res ResponseWriter, req *Request) {
		ctx := saveNumber(req.Context(), 22)

        next.ServeHTTP(res, req.WithContext(ctx))
    })
}

func receiver(next Handler) Handler {
    return HandlerFunc(func(res ResponseWriter, req *Request) {
		number := GetNumber(ctx)

		// ...
	})
}

The most ergonomic way is to use a setter and a getter for retrieve data from the context:

type IdKey struct{}

func saveNumber(ctx context.Context, number int) context.Context {
	return context.WithValue(ctx, IdKey{}, number)
}

func getNumber(ctx context.Context) int {
	return ctx.Value(IdKey{}).(int)
}

pipelines

You can take advantage of the middleware signature and inject a handler to test his result catching ctx values.

func Test_Injector_Middleware(t *testing.T) {
	handler := injector(test(t))

	req, _ := NewRequest(MethodGet, "", nil)

	handler.ServeHTTP(httptest.NewRecorder(), req)
}

func test(t *testing.T) Handler {
	return HandlerFunc(func(res ResponseWriter, req *Request) {
		number := getNumber(req.Context())

		if number != 22 {
			t.Fatal("not expected number")
		}
	})
}

For test other side effects in middlewares is a good practice to define parametrs as interfaces in order to make dependency injection testable.

Composing

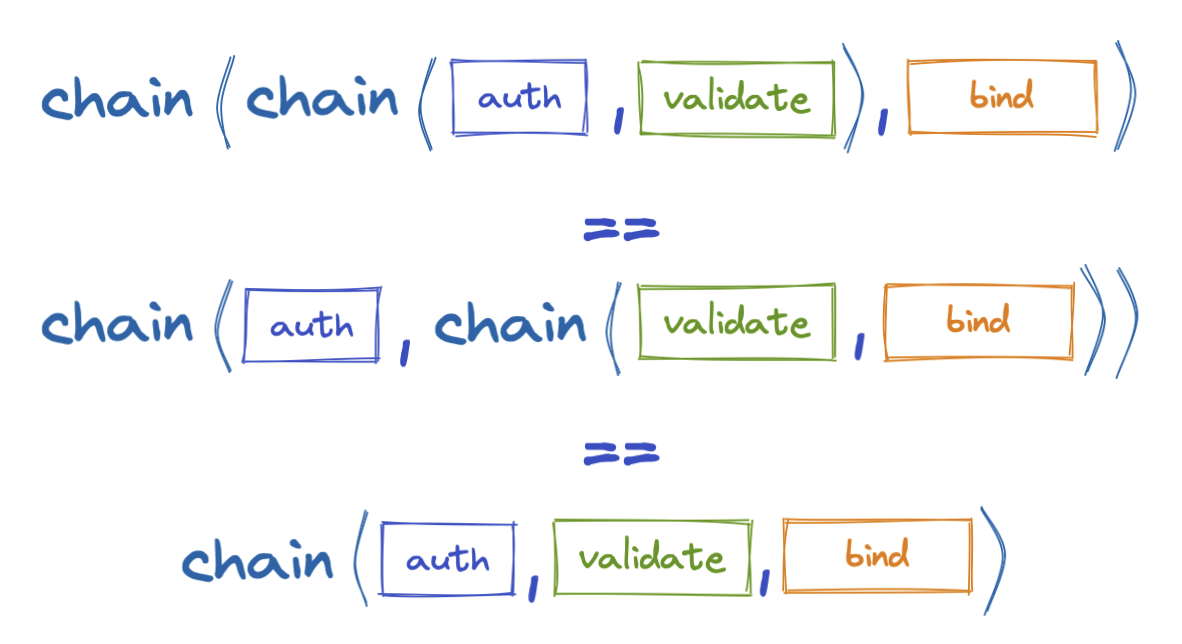

As I said before, middlewares could be seen as an instance of the monoid class: there’s an operation that, given two middlewares, produces a third one. We will call this operation chain. Chain also respects the associavity rule, so you could compose more than two middlewares at the same time:

asociativity

For the sake of ergonomy all this three formulas will be mixed in the same function

func Chain(mids ...Middleware) Middleware {
	return func(handler Handler) Handler {
		if len(mids) < 1 {
			return handler
		}

		for i := len(mids) - 1; i >= 0; i-- {
			handler = mids[i](handler)
		}

		return handler
	}
}

Just a little bit more of category theory: obviously the id element in the monoid is the middleware with no logic inside:

func id(next Handler) Handler {
	return HandlerFunc(func(res ResponseWriter, req *Request) {
		next.ServeHTTP(res, req)
	})
}

pipelines

Packaging

pipelines

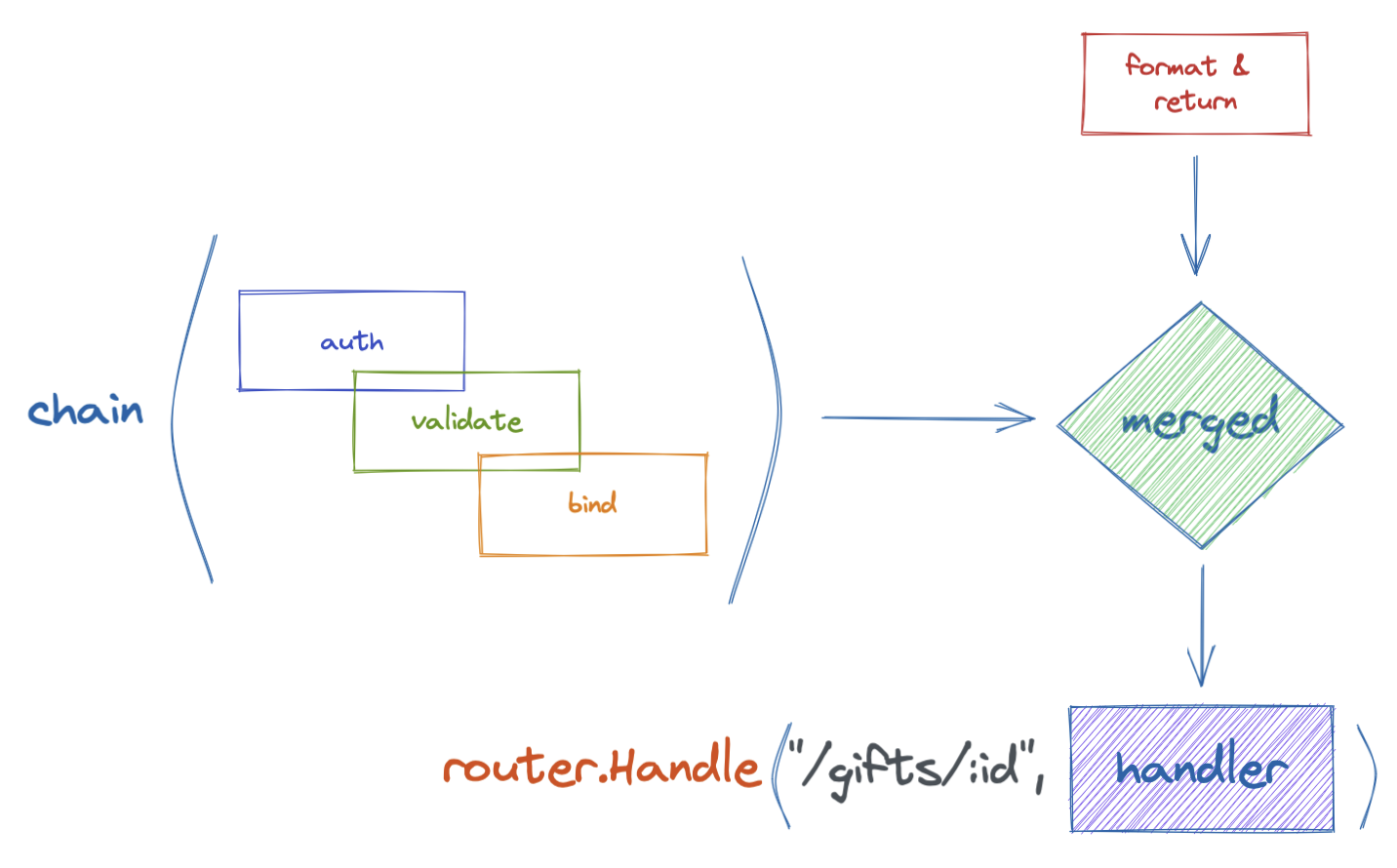

There’s so many routing libraries out there, but they all work similary. Here’s an example with the gorilla/mux API:

router := mux.NewRouter()

handler := chain(auth,validate,bind)(format)

router.Handle("/gifts/{id}", handler)

http.Handle("/", r)

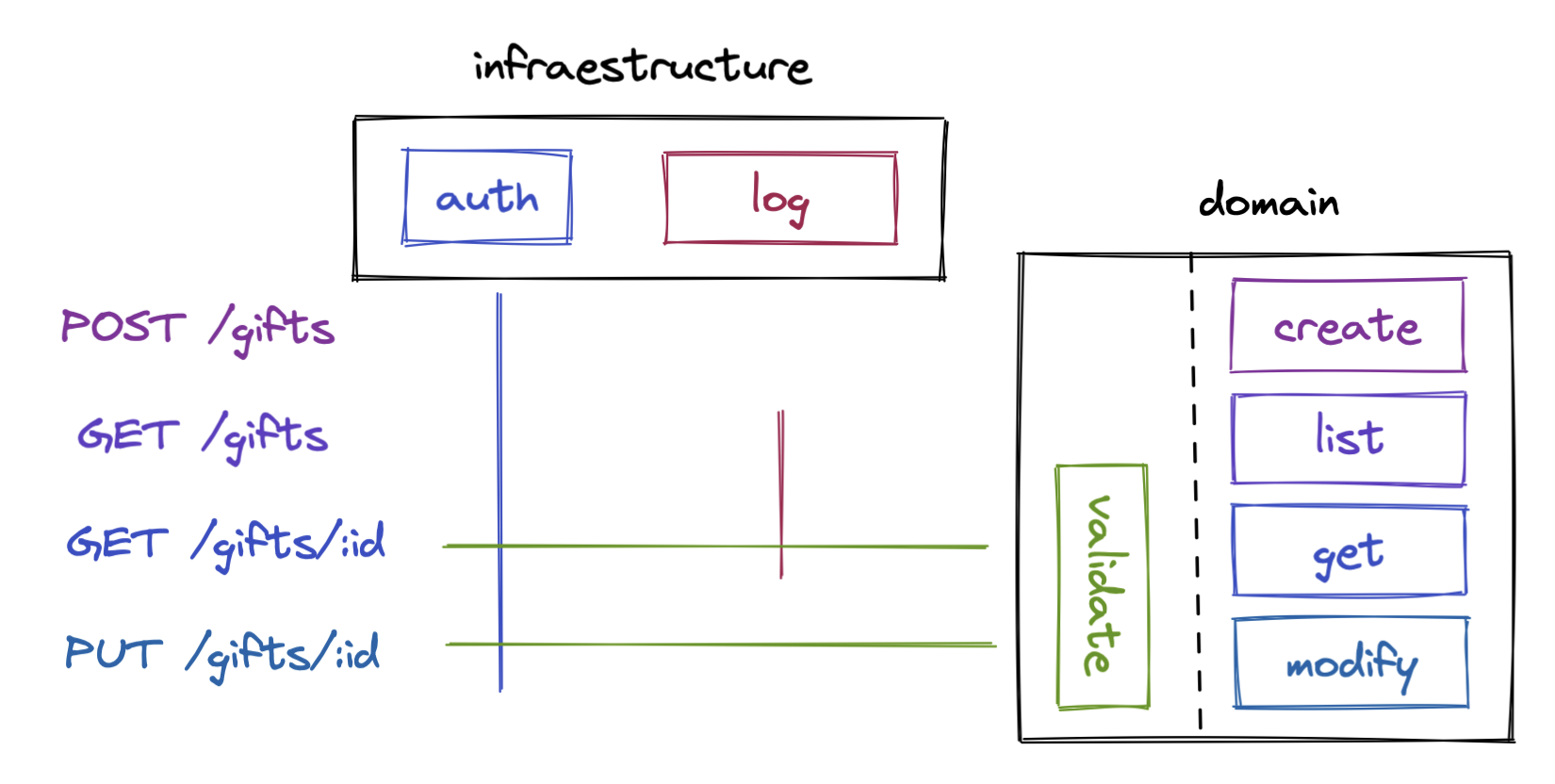

Architecture matrix

From a DDD perspective, you will find yourself writing two kinds of middlewares definitions:

infraestructure: authorization, logging, caching …
domain: middlewares that yo need to keep inside the endpoints domain

pipelines

Use cases

dynamic dependency injection

func Stores(db *gorm.DB) Middleware {
	return func(next Handler) Handler {
		return HandlerFunc(func(res ResponseWriter, req *Request) {
			ctx := context.WithValue(req.Context(), DbKey{}, db)

			next.ServeHTTP(res, req.WithContext(ctx))
		})
	}
}

bind-like pattern

With that in mind it’s simple to bring route-object binding to your REST API, somehow laravel does:

func Bind(table string) Middleware {
	return func(next Handler) Handler {
		return HandlerFunc(func(res ResponseWriter, req *Request) {
			id := mux.Vars(req)["id"]

            object := getObject(id)

            ctx = context.WithValue(req.Context(), BindKey{}, object)

            next.ServeHTTP(res, req.WithContext(ctx))
		})
	}
}

And also collections for lists endpoints:

func BindCollection(table string) Middleware {
	return func(next Handler) Handler {
		return HandlerFunc(func(res ResponseWriter, req *Request) {
            ctx := req.Context()

            collection := getTable(table)

            ctx = context.WithValue(ctx, CollectionKey{}, collection)

            next.ServeHTTP(res, req.WithContext(ctx))
		})
	}
}

validators

pipelines

Define a function that can check errors in an incoming request is easy:

type Checker func(*Request) error

So, implementing a middleware for validation is as easy as define a middleware that just iterates over a collecition of checks:

func Validate(checks ...Check) Middleware {
	return func(next Handler) Handler {
		return HandlerFunc(func(res ResponseWriter, req *Request) {
			for _, check := range checks {
				err := check(req)
				if err != nil {
					Error(res, err.Error(), StatusBadRequest)
					return
				}
			}

			next.ServeHTTP(res, req)
		})
	}
}

Even better, we could define a middleware builder based on the status error you want to return, and predefine some instances for to check conditions, validate input data, rate limiters …

func BuildValidation(status int) ValidateFunc {
	return func(checks ...Check) Middleware {
		// ...

			if err != nil {
				http.Error(res, err.Error(), status)
				return
			}
	}
}

var Meet = BuildValidation(http.StatusPreconditionFailed)
var Limit = BuildValidation(http.StatusTooManyRequests)
var Validate = BuildValidation(http.StatusBadRequest)
var Authenticate = BuildValidation(http.StatusUnauthorized)
var Authorize = BuildValidation(http.StatusForbidden)

My library

In order to avoid boilerplate code in every http backend project, I’ve created a library that let you reuse some of the definitions I discuss before:

middleware type
chain function
check type
validate middleware
condition middleware
